| Summary | Synology E10G22-T1-Mini. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Blue |
| Category Code | NIC |
| Unit Box Height | 0.046 |
| Unit Box Length | 0.142 |
| Unit Box Width | 0.1 |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab/IEEE 802.3an/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 100/1000/10000/2500/5000 Mbit/s |
| Cabling technology | 10GBase-T |
| Wi-Fi | No |
| Full duplex | Yes |
| Auto-negotiation | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Component for | NAS/Storage server |
| Product colour | Blue |
| Internal | Yes |
| Compatible products | Synology RS422+, DS1522+ |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Width | 45.38 mm |
| Depth | 75.7 mm |
| Height | 26.37 mm |
| Interface type | PCIe 3.0 x2 |
| Unit Calculated Weight | 0.11 kg |
| Product Net Weight | 0.1 kg |
| Unit Calculated Volume | 0.0006532 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 0.11 kg |
| Unit Width | 10 cm |
| Shipping Box Height | 4.6 cm |
| Unit Depth | 14.2 cm |
| Shipping Box Depth | 14.2 cm |
| Unit Height | 4.6 cm |
| Shipping Box Width | 10 cm |
| Name | NET CARD PCIE 10GB/E10G22-T1-MINI SYNOLOGY |
| Model | E10G22-T1-Mini |
| Model name | E10G22-T1-Mini |
| Komentarai / Rašyti komentarą | Bendras įvertinimas prekei — |
|

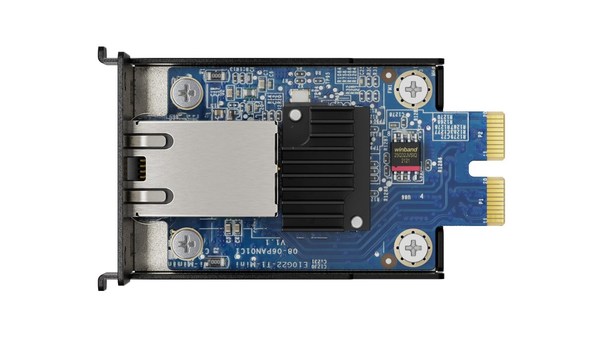

10GbE RJ-45 network upgrade module for compact Synology servers.
Maximize bandwidth to tackle heavy-duty applications
The Synology E10G22-T1-Mini Network Upgrade Module is designed to easily and quickly upgrade your Synology system with 10GbE connectivity. Simple installation, low implementation cost, and support for nearly any network environment makes it the ideal solution for small businesses and home users looking to maximize the performance potential of their deployments.
Throughput
Expand system capabilities with 10GbE connectivity
Flexibility
Integrate easily with support for 10/5/2.5/1 Gbps networks
Compatibility
Designed for maximum performance and reliability in Synology systems.
Simple installation
Install the E10G22-T1-Mini through the dedicated and easily-accessible network upgrade slot to instantly add bandwidth availability in Synology servers featuring compact-size enclosures.
Multi-gig support
Integrate into any RJ-45 network environment with autonegotiation between 10, 5, 2.5, 1 Gbps, and 100 Mbps data rates based on actual network conditions.
|
![]() |
