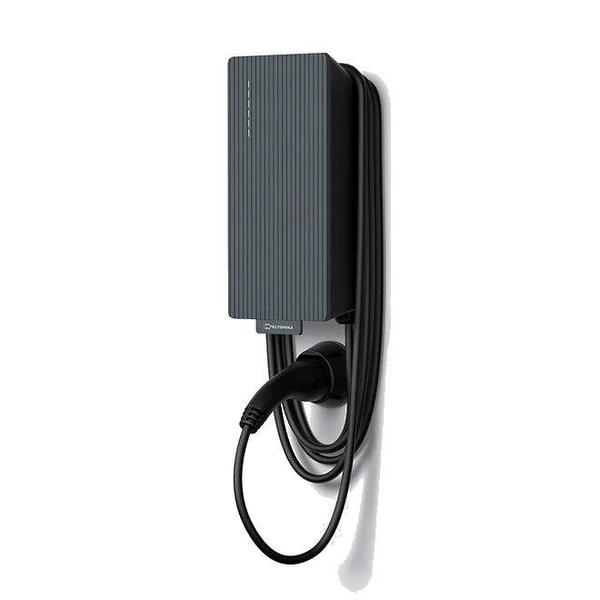

EV CHARGER 22KW EVC2 3PH/EVC2002120S0 TELTONIKA

22kW (32A / 3-phase) 5 m cable.


Main features
DIMENSIONS  Width 190mm, Height 401mm, Depth 125mm
OUTPUT OPTIONS Type 2 cable 5m
FRONT PLATE OPTIONS Not included
CONTROL TYPES  Android app – Bluetooth and Local Wifi, iOS app – Bluetooth
OCPP 1.6 – Ethernet, wifi, 4G
POWER OPTIONS 22kw three phase
Detailed specifications
CERTIFICATIONS
CE, RCM & UKCA compliant
Codes and standards: 2014/35/EU, 2014/53/EU, IEC 61851-1, IEC 61851-21-2, IEC 62955
Environment - 2011/65/EU, REACH, RoHS, EUR1
CHARGER CONNECTIVITY
WiFi 2.4 Ghz b/g/n connection
Bluetooth low energy 5.0
NFC card reader ISO 14443A
Ethernet (RJ45)
4G/LTE (CAT 1)
INPUT CABLING
Cable entry  diameter — Up to 25mm
Wiring cable cross section in connectors — Up to 10mm2
Cable entry from option from bottom
Cable entry from option from back
PROTECTION
Input and output voltage and current monitoring
Overvoltage category — OVC III
Protection against electric shock
Residual current detection 6 mA DC (IEC 62955)
Ground fault detection
Degree of dust and water protection — IP56
Impact resistance — IK10
Fire class — UL94
RATED FREQUENCY 50/60 Hz
NETWORK/GROUNDING TYPES TN and TT
VOLTAGE  Three phase: 400 V (±10%)
OPERATING SPECIFICATIONS
Humidity to 95% RH non condensing
Operating temperature: -30ºC - +50ºC
Storage temperature: -40ºC - +60ºC
TEMPERATURE SENSORS In all main components
LED INDICATOR LIGHTS Showing charging sequence and warnings/errors
BUILT IN ENERGY METERING Accuracy deviation <1%
LOAD BALANCING
Static load balancing
Dynamic load balancing
Automatic phase balancing
Multi-device load balance
Multi-level load balance
Solar energy modes
Zero potential contact
Multi sensor support
